PGT · WinGuard Aluminum

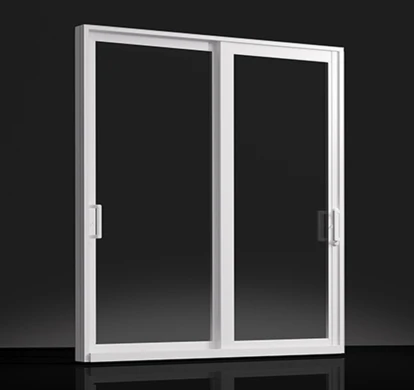

WinGuard Aluminum Preferred Sliding Glass Door (SGD770)
Our most popular impact-resistant product, this smooth operating door will add extra security to your home and let natural light into your living room or master bedroom.
- Material
- Aluminum
- Application
- Residential
- Impact rated
- Yes
Available colors
White · Bronze · Black · Clear Anodize
Specifications
Product details
| Model | SGD770 |
|---|---|
| Product line | WinGuard Aluminum |
| Panels | Up to 8 |
| Max width | Up to 40 ft |
| Configurations | By-pass, pocket and corner; up to 8 panels and 4 tracks |
| Features | Up to eight glass door panels move horizontally along lower tracks; Expansions of up to 40’ for uninterrupted views and a great source of natural light; Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks; Hidden installation and assembly screws for a sleek, finished appearance |
| Locking | Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks |
| Interior frame colors | White, Bronze, Black, Clear Anodize |
| Exterior frame colors | White, Bronze, Black, Clear Anodize |
| Glass | Clear |
| Tinted glass | Bronze, Gray, Green, Azure Blue, Graylite II, Solarcool Bronze |
| Obscure glass | Obscure, White Interlayer |
| Grid styles | 1" Raised Flat, 9/16" Flat Grid Between the Glass |
| Grid patterns | None, Standard Half, Brittany/Prairire |
| Screens | 1814 Charcoal or Gray, 1816 Charcoal or Gray, 2020 Charcoal or Gray, BetterVue, Standard Screen, Heavy Duty Screen |
