PGT · WinGuard Vinyl

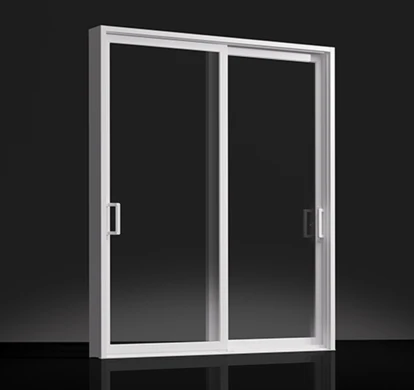

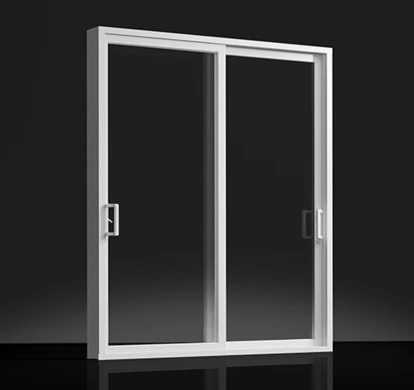

WinGuard Vinyl Preferred View Sliding Glass Door (SGD5570NS)
This expansive style invites natural light while providing an extra layer of protection. Features narrow panel profiles on all sides - just 2.5 inches.
- Material
- Vinyl
- Application
- Residential
- Impact rated
- Yes
Available colors
White · Beige · Bronze · Black
Specifications
Product details
| Model | SGD5570NS |
|---|---|
| Product line | WinGuard Vinyl |
| Panels | Up to 8 |
| Max width | Up to 40 ft |
| Configurations | Up to 8 panels |
| Features | 2.5” narrow panel profile; Up to eight glass door panels move horizontally along tracks; Expansions of up to 40’ for uninterrupted views and a great source of natural light; Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks; Heavy-duty quad rollers for easy fingertip operation; Hidden installation and assembly screws for a sleek, finished appearance |
| Rollers | Heavy-duty quad rollers for easy fingertip operation |
| Locking | Dual-point locking mechanism provides added security by restricting panels from being lifted off the tracks |
| Interior frame colors | White, Beige, Bronze, Black |
| Exterior frame colors | White, Beige, Bronze, Black |
| Glass | Clear |
| Tinted glass | Bronze, Gray, Green, Azure Blue, Graylite II, Solarcool Bronze |
| Obscure glass | Obscure, White Interlayer |
| Grid styles | 13/16" Flat Grid Between Glass, 9/16" Flat Grid Between the Glass, 1" Contour Grid Between the Glass, 7/8" Traditional Simulated Divided |
| Grid patterns | None, Standard Half, Brittany/Prairire |
| Screens | 1816 Charcoal, BetterVue Charcoal, Standard, Heavy Duty |
| Low e | EnergyShield, EnergyShield Max, Solar Control Low-E2 |
