Manufacturer: MI Windows and Doors
MI Windows and Doors · VX4500

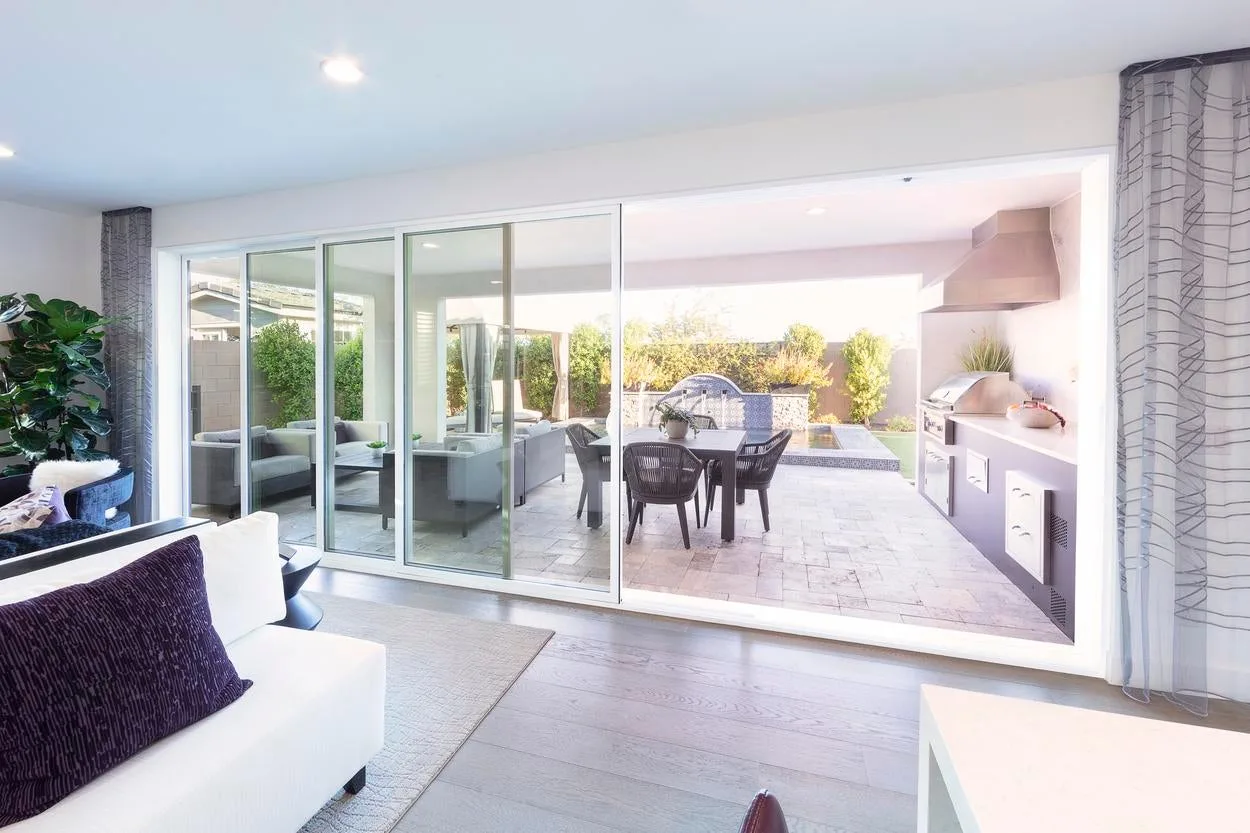

VX4500 Series Stacking Multi-Slide Door
Vinyl stacking multi-slide door whose panels stack behind one another to open up to 20 feet wide.
- Material
- Vinyl
- Application
- New construction, Replacement
- Impact rated
- No
Available colors
White · Almond · Clay · Carbonite Black
Specifications
Product details
| Model | VX4520 (2-track), VX4530 (3-track), VX4540 (4-track) |
|---|---|
| Configurations | VX4520: 2, 3 or 4 panels; VX4530: 3 or 6 panels; VX4540: 3 panels with screen or 4 panels |
| Glass | HP Low-E (U 0.28 / SHGC 0.20); Argon + HP Low-E + IS-20 (U 0.24 / SHGC 0.20, ENERGY STAR all zones) |
| Hardware | Standard handle color-matched to frame; flush handle in Carbonite Black; keyed or unkeyed |
| Sill | Integrated weep system, 1.55in sill height |
| Screen | Panel screen option |
| Interior colors | Color-matched to exterior |
| Warranty | Lifetime limited |
| Features | Narrow sightlines, wide glass panels, warm-edge spacer |
Sizes
Standard sizes
- 2-panel up to 10 ft wide
- 3-panel up to 15 ft wide
- 4-panel up to 20 ft wide
- Heights 63in to 95 1/2in (max 8 ft)
- Standard widths 59 1/8in to 236 5/8in
